| Quantity: | |
|---|---|
0.2-2.5mm
INNO
3920109090

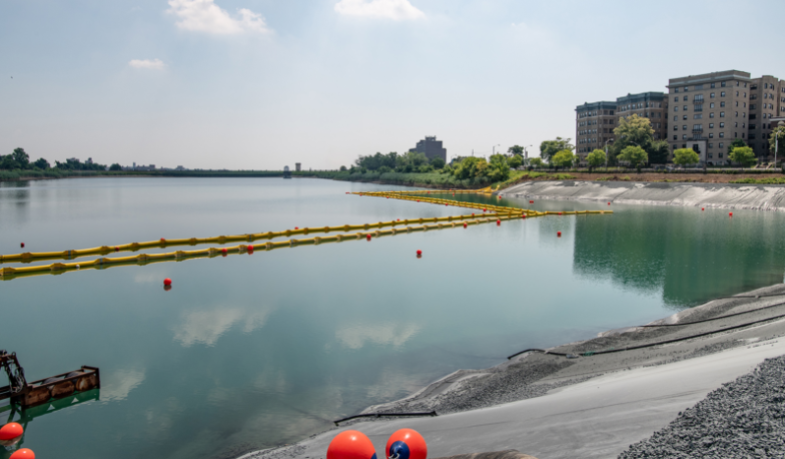

Geomembrane is the most widely used products for solid waste containment (such as landfill liners)
, mining and water containment applications. is made from polyethylene resins materials by blow
molding process.According to the different raw materials, Geomembrane can be divided into
HDPE geomembrane,LDPE Geomembrane, EVA Geomembrane and PVC Geomembrane,etc.
| Properties | Test method | HDPE-Smooth | ||||
| Thickness | ASTM D 5199 | 0.5mm(20mil) | 0.75mm(30mil) | 1.0mm(40mil) | 1.5mm(60mil) | 2.0mm(80mil) |
| Density | ASTM D 792 | ≥0.94g/m3 | ||||
| Tensile properties | ASTM D 638 | |||||
| Yield strength | KN/m(lb/in) | 70(40) | 11(63) | 15(84) | 22(126) | 29(168) |
| Break strength | KN/m(lb/in) | 12(74) | 20(114) | 27(152) | 40(228) | 53(304) |
| Yield elongation | % | 12 | ||||
| Break elongation | % | 700 | ||||
| Tear resistance | ASTM D 1004 N(lb) | 62(14) | 93(21) | 125(28) | 187(42) | 249(56) |
| Punctre resistance | ASTM D 4833 N(lb) | 160(36) | 240(54) | 320(72) | 480(108) | 640(114) |
| Carbon black content | ASTM D 1603 (%) | 2m~3m | ||||
Geomembrane is the most widely used products for solid waste containment (such as landfill liners)
, mining and water containment applications. is made from polyethylene resins materials by blow
molding process.According to the different raw materials, Geomembrane can be divided into
HDPE geomembrane,LDPE Geomembrane, EVA Geomembrane and PVC Geomembrane,etc.
| Properties | Test method | HDPE-Smooth | ||||
| Thickness | ASTM D 5199 | 0.5mm(20mil) | 0.75mm(30mil) | 1.0mm(40mil) | 1.5mm(60mil) | 2.0mm(80mil) |
| Density | ASTM D 792 | ≥0.94g/m3 | ||||
| Tensile properties | ASTM D 638 | |||||
| Yield strength | KN/m(lb/in) | 70(40) | 11(63) | 15(84) | 22(126) | 29(168) |
| Break strength | KN/m(lb/in) | 12(74) | 20(114) | 27(152) | 40(228) | 53(304) |
| Yield elongation | % | 12 | ||||
| Break elongation | % | 700 | ||||
| Tear resistance | ASTM D 1004 N(lb) | 62(14) | 93(21) | 125(28) | 187(42) | 249(56) |
| Punctre resistance | ASTM D 4833 N(lb) | 160(36) | 240(54) | 320(72) | 480(108) | 640(114) |
| Carbon black content | ASTM D 1603 (%) | 2m~3m | ||||
