Product Features:
Excellentphysical and mechanicperformances including stress crack resistance ,tear strength, puncture resistance, good tensile properties(yield strength, break strength, yield elongation, break elongation),outstanding low & high temperature resistance, UV resistance,anti-seepage, anti-aging,wear resistance, goodbarrier andgood bonding performances.
| Quantity: | |
|---|---|
0.2-2.5mm
INNO
3920109090
Product Introduction
HDPE geomembrane available in different thickness and colors
Features: Containment in both non-exposed and exposed applications
Applications
1：Suitable for lining of landfills, river embankments, tailings dams, sewage dams and reservoirs, channels and other hydraulic ponds.
2：Anti-seepage & lining for subway, basement and tunnel.
3：Saline seepage and water proofing for roadbed and other foundation.
4：Used for seepage-proofing lining of embankment and dam, vertical impermeable layer for foundation, construction of cofferdams, fertilizer plants.

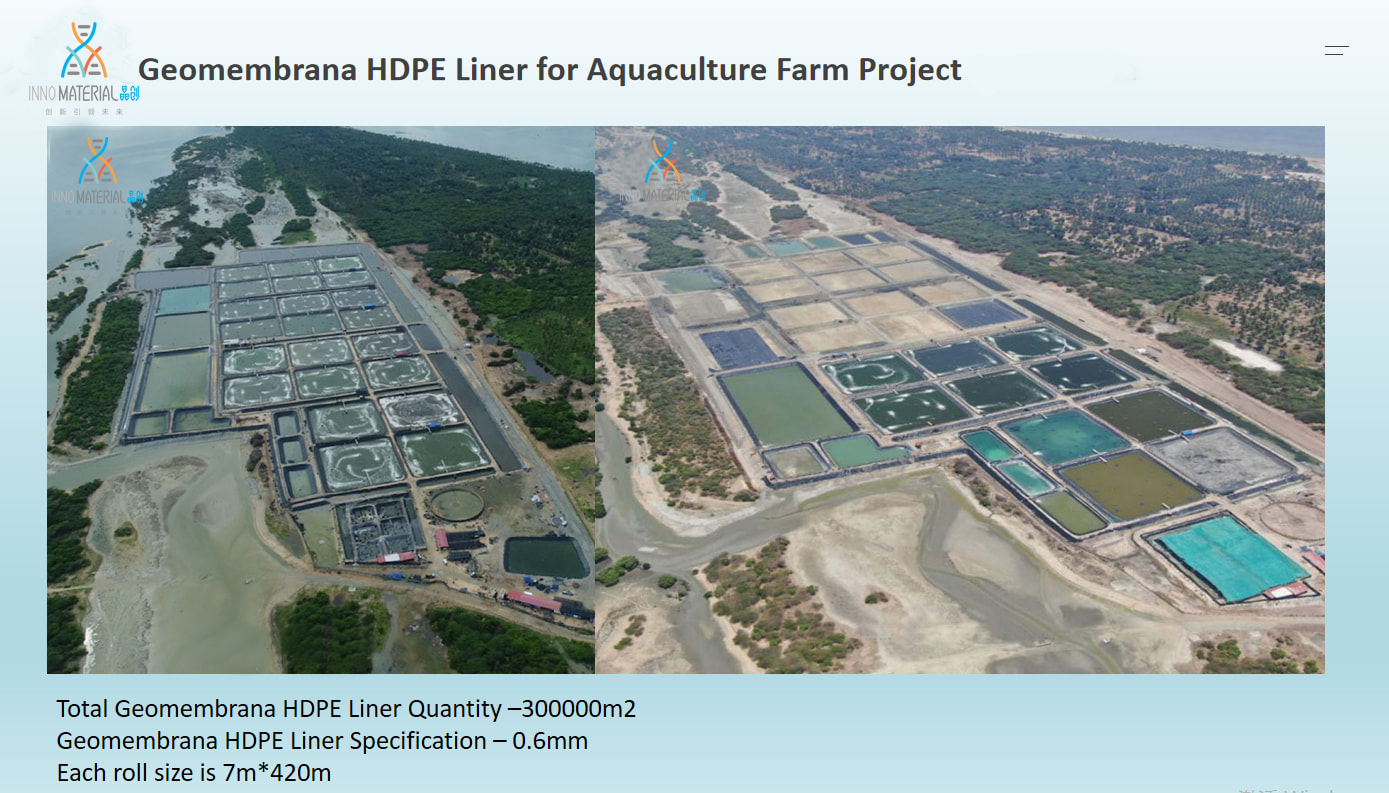

5：Used in sea water & freshwater aquaculture ponds.
6：Used in the foundation of road, highway & railway; the waterproof layer of expansive soi
Technical Data:
Item | Unit | Standard | 0.5mm | 0.75mm | 1.0mm | 1.5mm | 2.0mm | |
Density | G/CM3 | D1505 | 0.94 | 0.94 | 0.94 | 0.94 | 0.94 | |
Tensile Yield Strength | Kn/m | D6693 | 9 | 11 | 15 | 22 | 29 | |
Tensile break Strength | kn/m | D6693 | 15 | 20 | 27 | 40 | 53 | |
Tensile Break Elongation | % | D6693 | 700 | 700 | 700 | 700 | 700 | |
Tear Resistance | N | D1004 | 60 | 93 | 125 | 187 | 249 | |
Puncture Resistance | N | D4833 | 120 | 240 | 320 | 480 | 640 | |
Stress Crack Resistance | hr | D5397 | 500 | 500 | 500 | 500 | 500 | |
Dimensional Stability | % | ±2 | ||||||
Oven Aging at 85℃after 90 days Standard OIT -% High Pressure OIT-% | % | D5721 D3895 D5885 | 55 80 | |||||
Oxidative Induction time Standard OIT High Pressure OIT | min | D3895 D4885 | 100 400 | |||||
UV Resistance High Pressure OIT -% Retained After 1600 hrs | % | D5885 | 50 | |||||
Product Introduction
HDPE geomembrane available in different thickness and colors
Features: Containment in both non-exposed and exposed applications
Applications
1：Suitable for lining of landfills, river embankments, tailings dams, sewage dams and reservoirs, channels and other hydraulic ponds.
2：Anti-seepage & lining for subway, basement and tunnel.
3：Saline seepage and water proofing for roadbed and other foundation.
4：Used for seepage-proofing lining of embankment and dam, vertical impermeable layer for foundation, construction of cofferdams, fertilizer plants.
5：Used in sea water & freshwater aquaculture ponds.
6：Used in the foundation of road, highway & railway; the waterproof layer of expansive soi
Technical Data:
Item | Unit | Standard | 0.5mm | 0.75mm | 1.0mm | 1.5mm | 2.0mm | |
Density | G/CM3 | D1505 | 0.94 | 0.94 | 0.94 | 0.94 | 0.94 | |
Tensile Yield Strength | Kn/m | D6693 | 9 | 11 | 15 | 22 | 29 | |
Tensile break Strength | kn/m | D6693 | 15 | 20 | 27 | 40 | 53 | |
Tensile Break Elongation | % | D6693 | 700 | 700 | 700 | 700 | 700 | |
Tear Resistance | N | D1004 | 60 | 93 | 125 | 187 | 249 | |
Puncture Resistance | N | D4833 | 120 | 240 | 320 | 480 | 640 | |
Stress Crack Resistance | hr | D5397 | 500 | 500 | 500 | 500 | 500 | |
Dimensional Stability | % | ±2 | ||||||
Oven Aging at 85℃after 90 days Standard OIT -% High Pressure OIT-% | % | D5721 D3895 D5885 | 55 80 | |||||
Oxidative Induction time Standard OIT High Pressure OIT | min | D3895 D4885 | 100 400 | |||||
UV Resistance High Pressure OIT -% Retained After 1600 hrs | % | D5885 | 50 | |||||
