Sprayed Textured Geomembrane

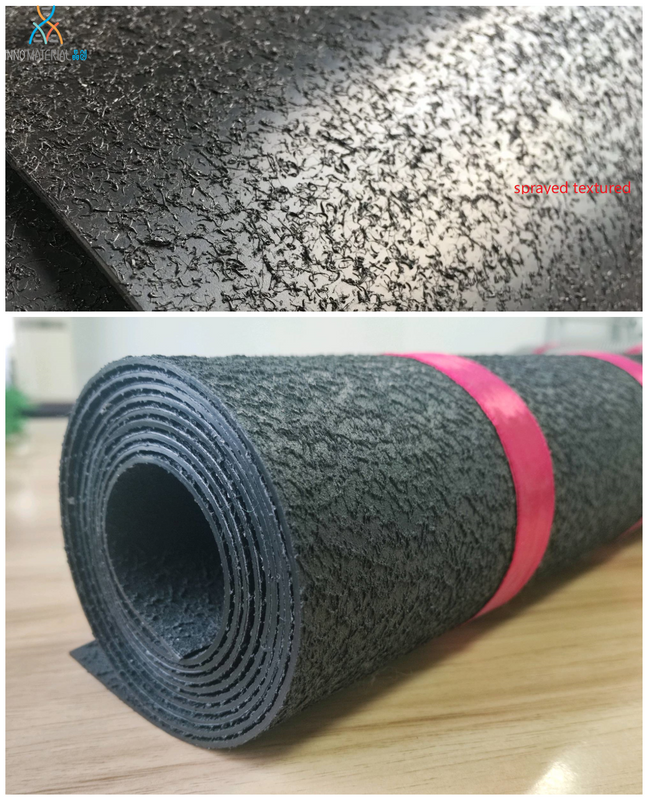

SPRAYED TEXTURED SURFACE HDPE GEOMEMBRANE

Product Introduction

HDPE geomembrane available in different thickness and colors

Features: Containment in both non-exposed and exposed applications

Applications
1：Suitable for lining of landfills, river embankments, tailings dams, sewage dams and reservoirs, channels and other hydraulic ponds.

2：Anti-seepage & lining for subway, basement and tunnel.

3：Saline seepage and water proofing for roadbed and other foundation.

4：Used for seepage-proofing lining of embankment and dam, vertical impermeable layer for foundation, construction of cofferdams, fertilizer plants.

5：Used in sea water & freshwater aquaculture ponds.

6：Used in the foundation of road, highway & railway; the waterproof layer of expansive soil.

7：Used in roof seepage-proofing/waterproofing as membranes.

• Technical Data:

• Item	Unit	Standard		0.5mm	0.75mm	1.0mm	1.5mm	2.0mm
  Density	G/CM3	D1505		0.94	0.94	0.94	0.94	0.94
  Tensile Yield Strength	Kn/m	D6693		9	11	15	22	29
  Tensile break Strength	kn/m	D6693		15	20	27	40	53
  Tensile Break Elongation	%	D6693		700	700	700	700	700
  Tear Resistance	N	D1004		60	93	125	187	249
  Puncture Resistance	N	D4833		120	240	320	480	640
  Stress Crack Resistance	hr	D5397		500	500	500	500	500
  Dimensional Stability	%		±2
  Oven Aging at 85℃after 90 days Standard OIT -% High Pressure OIT-%	%	D5721 D3895 D5885	55 80
  Oxidative Induction time Standard OIT High Pressure    OIT	min	D3895 D4885	100 400
  UV Resistance High Pressure OIT -% Retained After 1600 hrs	%	D5885	50
