| Quantity: | |
|---|---|
0.2-2.5mm
INNO
3920109090

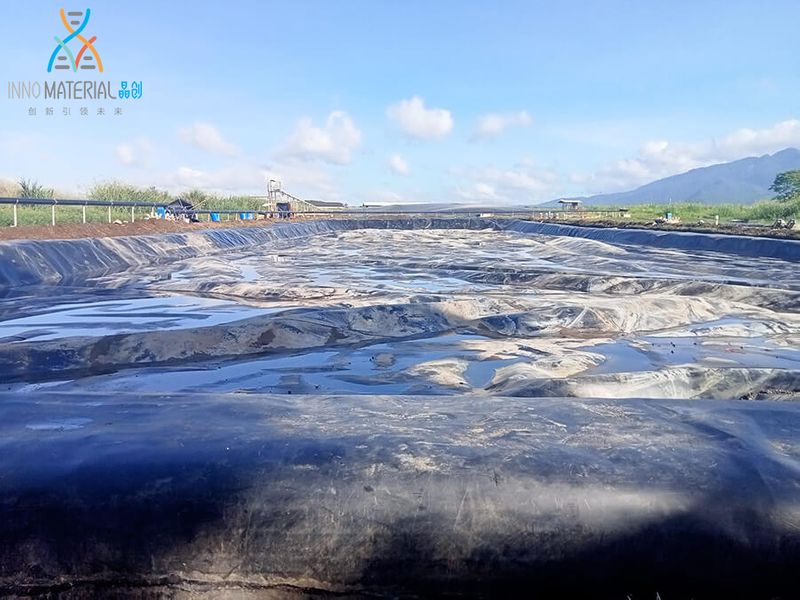

HDPE Geomembrane; pond liner
| Thickness | Within 0.1mm,0.2mm,0.3mm,0.5mm,0.75mm,1.0mm,1.5mm,2.0mm,2.5mm,3.0mm,4.0mm,5.0mm |
| Material | HDPE, LDPE, LLDPE |
| Color | Black, White, Blue, Green |
| Length | 50m-200m/ roll or as required |
| Width | Smooth surface 1m-12m, Rough surface 4m-8m |
| Surface | smooth surface, single surface textured, dual surfaces textured |
| Certification | CE, ISO9001, ISO14001 |
Main Features:
1.UV resistance
2.Puncture-resisting
3.Chemical resistance
4.large operating temperature range
5.Good flexibility
HDPE Geomembrane Technical Parameter (GRI GM13 ASTM Standard)
| Spec Properties | Test method ASTM | GMS0.5 | GMS0.75 | GMS1.0 | GMS1.25 | GMS1.5 | GMS2.0 | GMS2.5 |
| Thickness | D5199 | 0.5mm | 0.75mm | 1.00mm | 1.25mm | 1.50mm | 2.00mm | 2.50mm |
| Density (≥ g/cc) | D1505 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 |
| Tensile Properties (Each direction) (≥) • yield strength • break strength • yield elongation • break elongation | D 6693 Type IV | 8 kN/m 14kN/m 12% 700% | 11 kN/m 20kN/m 12% 700% | 15 kN/m 27 kN/m 12% 700% | 18 kN/m 33 kN/m 12% 700% | 22 kN/m 40 kN/m 12% 700% | 29 kN/m 53 kN/m 12% 700% | 37kN/m 67kN/m 12% 700% |
| Tear Resistance (≥) | D 1004 | 64 N | 93 N | 125 N | 156 N | 187 N | 249 N | 311 N |
| Puncture Resistance (≥) | D 4833 | 160 N | 240 N | 320 N | 400 N | 480 N | 640 N | 800 N |
| Stress Crack Resistance (≥) | D 5397 | 500 hr. | 500 hr. | 500 hr. | 500 hr. | 500 hr. | 500 hr. | 500 hr. |
| Carbon Black Content | D 1603 | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% |
| Carbon Black Dispersion | D 5596 | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) |
| Oxidative Induction Time (OIT) (≥) (a)Standard OIT - or - (b)High Pressure OIT | D 3895 D 5885 | 100 min. 400 min. | 100 min. 400 min. | 100 min. 400 min. | 100 min. 400 min. | 100 min. 400 min. | 100 min. 400 min. | 100 min. 400 min. |
HDPE Geomembrane Application:
| Environmental protection, sanitation (such as domestic waste landfill, sewage treatment, toxic and hazardous materials disposal site, dangerous goods warehouse, industrial waste, construction and explosive waste, etc.) |
| Water conservancy (such as seepage prevention, plugging, reinforcement, anti-seepage of canals, vertical core walls, slope protection, etc.) |
| Municipal works (metro, underground construction and roof storage tanks, seepage prevention of roof gardens, lining of sewage pipes, etc.) |
| Garden (artificial lake, pond, pond lining of golf course, slope protection, etc.) |
| Petrochemical (chemical plant, refinery, oil storage tank anti-seepage, chemical reaction tank, lining of sedimentation tank, secondary lining, etc.) |
| Mining (washing tanks, heap leaching tanks, ash yards, dissolution tanks, sedimentation tanks, storage yards, tailings tanks, anti-seepage, etc.) |
| Agriculture (reservoir, drinking water pool, storage pond, anti-seepage of irrigation system) |
| Aquaculture (fish ponds, lining of shrimp ponds, sea cucumber ring slope protection, etc.) |
| Salt industry (salt field crystallization tank, brine pool lid, salt film, salt pond plastic film) |
