| Quantity: | |
|---|---|
0.2-2.5mm
INNO
3920109090

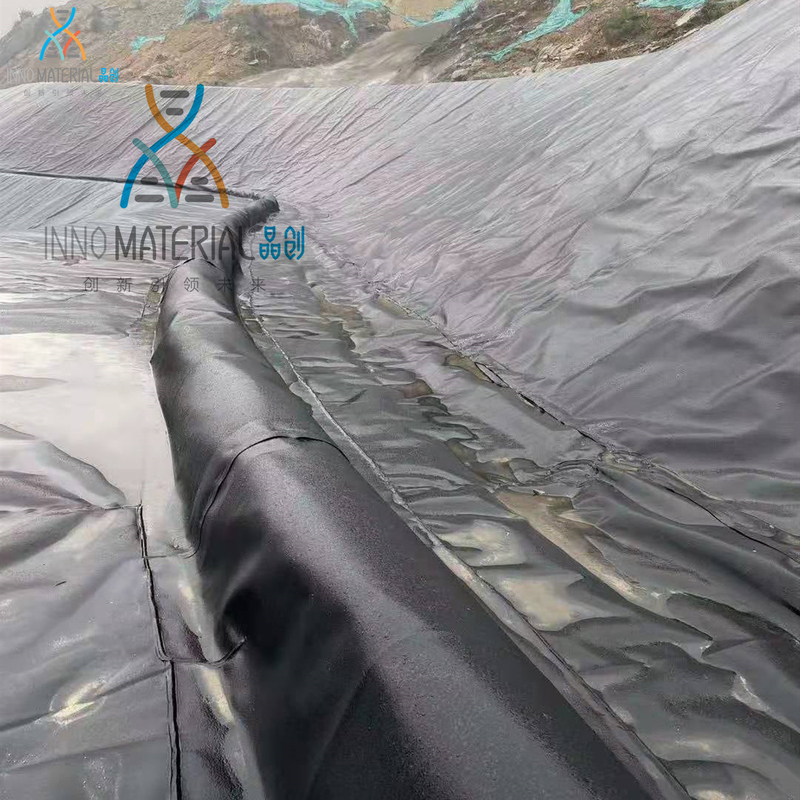

HDPE geomembrane and pond liner is produced from high density polyethylene resin by film-blowing process, adding carbon black, antioxidant, anti-aging and UV-resistance component. Now it is the most widely used products for solid waste containment (such as landfill liners), mining and water containment applications.
Characteristics:
1. Good flexibility
2. For service temperature range:-70°C~110°C
3. Corrosion resistance, aging resistance
4. Excellent environmental stress cracking resistance property
5. High tensile strength and elongation
Main Features:
1.UV resistance
2. Anti-seepage;
3. Isolation
4. High tearing resistance
5. Puncture-resisting
| ed Property | Test Method | Frequency | Minimum Average Value | |||||
| 0.50mm | 0.75mm | 1.00 mm | 1.50 mm | 2.00 mm | 2.50 mm | |||
| Thickness, (minimum average), mm Lowest individual reading | ASTM D 5199 | every roll | 0.50 0.425 | 0.750 0.675 | 1.00 0.90 | 1.50 1.35 | 2.00 1.80 | 2.50 2.25 |
| Density, g/cm3 | ASTM D 1505 | 90,000 kg | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 |
| Tensile Strength at Break, N/mm Strength at Yield, N/mm Elongation at Break, % Elongation at Yield, % | ASTM D 669 | 9,000 kg | 13 7 700 12 | 20 11 700 12 | 27 15 700 12 | 40 22 700 12 | 53 29 700 12 | 67 37 700 12 |
| Tear Resistance, N | ASTM D 1004 | 20,000 kg | 60 | 93 | 125 | 187 | 249 | 311 |
| Puncture Resistance, N | ASTM D 4833 | 20,000 kg | 160 | 240 | 320 | 480 | 640 | 800 |
| Carbon Black Content, % (Range) | ASTM D 603*/4218 | 9,000 kg | 2.0 - 3.0 | |||||
| Carbon Black Dispersion | ASTM D 5596 | 20,000 kg | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) |
| Notch Constant Tensile Load, hr | ASTM D 5397, | 90,000 kg | 300 | 300 | 300 | 300 | 300 | 300 |
| Oxidative Induction Time, min | ASTM D 3895, | 90,000 kg | >100 | >100 | >100 | >100 | >100 | >100 |
Municipal environmental projects , water conservancy projects
Landfill cap(closures), mining heap leach pads
Pond liner, canal linings, tank linings, raw water treatment reservoirs, retention ponds,
Waste water treatment lagoon, secondary containment
solid waste landfills, Hazardous waste landfills
