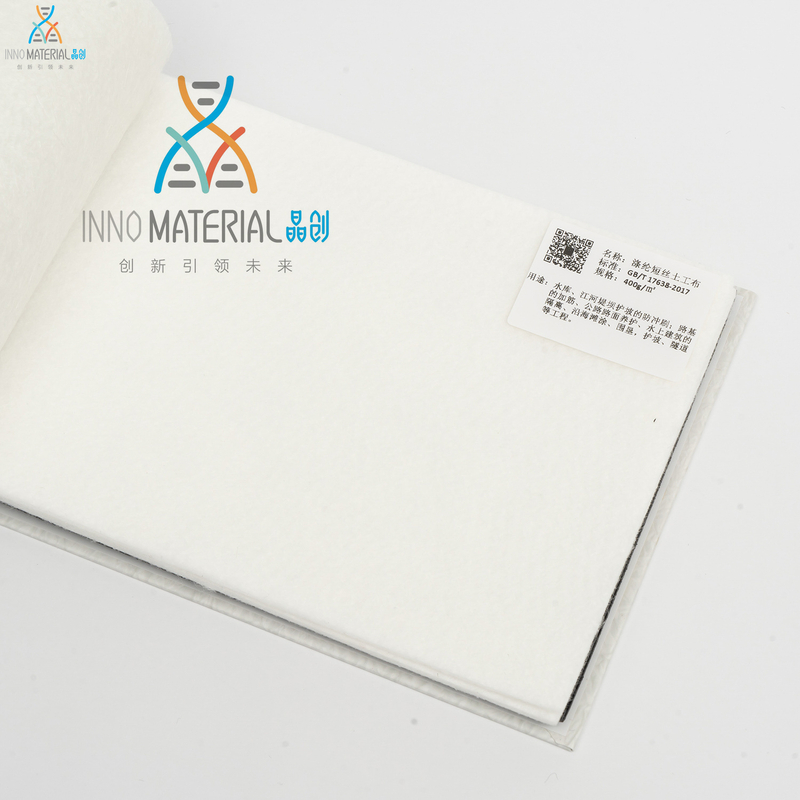

Wear-resistant Polypropylene Nonwoven Filament Geotextile for Highway

1. Isolation
The use of geotextile different physical properties (particle size, distribution, density and thickness, etc.) materials (such as soil and sand and gravel soil, soil and concrete, etc.) for isolation. So that two or more materials are not loss of inter-and non hybrid,to maintain the overall structure of the material and functions of the structures is to strengthen the load bearing capacity.
2 .Filter
When the water from fine materials into the soil layers of rough material, the use of acupuncture geogextile good air and water permeability, so that the water flow through, and effective interception soil particles, spinning, the small stone so as to maintain the stability of the soil and water projects.
3 Drainage
Acupuncture geotextile is a good hydraulic material, which can from a soil internal drainage channel, soil structure and excess liquid gasemissions.
4 Reinforced
Acupuncture use of geotextile to enhance soil and the tensile strength of the antideformation ability to increase the stability of the building structure in order to improve the quality of the soil.
5 Protection
Will focus on effective stress-proliferation, transfer or broken down by external force to prevent the soil and damage.
6. Closed
Acupuncture geotextile and other materials (primarily asphalt or plastic film) with the formation of impermeable layer of insulation layer. (Mainly used for road resurfacing and repairing, etc.)1. Isolation
The use of geotextile different physical properties (particle size, distribution, density and thickness, etc.) materials (such as soil and sand and gravel soil, soil and concrete, etc.) for isolation. So that two or more materials are not loss of inter-and non hybrid,to maintain the overall structure of the material and functions of the structures is to strengthen the load bearing capacity.
2 .Filter
When the water from fine materials into the soil layers of rough material, the use of acupuncture geogextile good air and water permeability, so that the water flow through, and effective interception soil particles, spinning, the small stone so as to maintain the stability of the soil and water projects.
3 Drainage
Acupuncture geotextile is a good hydraulic material, which can from a soil internal drainage channel, soil structure and excess liquid gasemissions.
4 Reinforced
Acupuncture use of geotextile to enhance soil and the tensile strength of the antideformation ability to increase the stability of the building structure in order to improve the quality of the soil.
5 Protection
Will focus on effective stress-proliferation, transfer or broken down by external force to prevent the soil and damage.
6. Closed
Acupuncture geotextile and other materials (primarily asphalt or plastic film) with the formation of impermeable layer of insulation layer. (Mainly used for road resurfacing and repairing, etc.)
Availability:
Quantity:
  • 100g-1500g

  • INNO

  • 5602100000

Application

O Airport runway, apron crack proof and isolation;
O The roadbed of expressway and highway strengthened and crack proof of the road;
O Isolation and reinforce for the port and wharf;
O Isolation and filtration for Sponge City and underground pipelines;
Isolation, filtration and anti-seepage for sewage treatment plant, landfill plant, pollutant storage tank, environmental protection and water structure;
O Reinforce, isolation, filtration and safeguard for the foundation of petroleum and chemistry warehouse;
O Reinforce, isolation, filtration and safeguard for farmland irrigation and water conservancy, watercourse, reservoir and channel, and for the project of farmland reclamation from the sea;
O Isolation for coal fly ash yard;
O Isolation, reinforcement and filtration for mine TIPS and heap leaching;
O Ecological slope protection and greening maintenance.

Technical data

SpecificationValues
Weight (g/m2)100150200250300350400450500600800
Weight variation (%)±4%
Thickness (mm)1.21.61.82.12.42.62.82.93.03.23.4
Width (m)1 to 6.5m (5.9m for container transportation)
Width deviation (%)±0.5%
Breaking Strength (≥KN/m)58111520222426283450
Elongation at Break (%) 50% to 90%
CBR Bursting Strength (≥KN/m)1.01.72.53.03.53.94.34.85.36.27.0
Sieve Size (mm)0.07 to 0.20
Vertical Permeability Coefficient (cm/s)≤2*10-1
Tear Strength (≥KN/m)0.150.240.350.390.420.460.500.530.580.650.9
