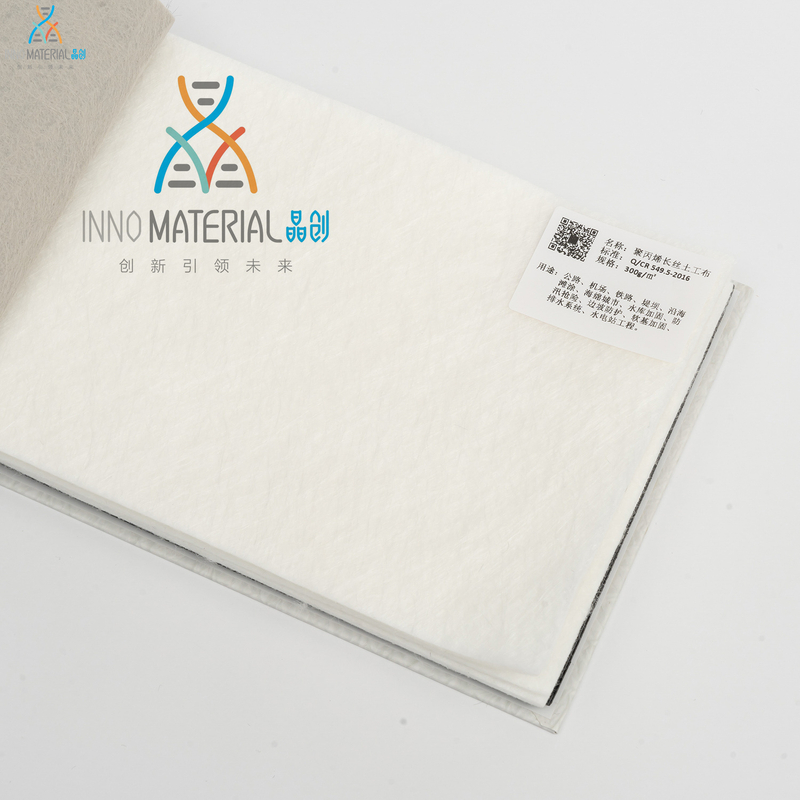

Non Woven Polypropylene Filament Geotextile for Reinformcement

POLYPROPYLENE SHORT FIBER NEEDLE PUNCHED GEOTEXTILE
Product Introduction:
Using ultra-high-strength polypropylene staple fiber or ES fiber as the main raw material, it is produced by non-woven technology and has the functions of isolation, reinforcement, protection, filtration, drainage, and buffering.
Product specifications: PP100~PP1200, width 2m~6m., length according to user requirements.
Features:
The physical and mechanical properties are 2 to 3 times higher than that of conventional products. The proportion of products with the same gram weight is low; the acid and alkali resistance is excellent, the hot melt adhesion is good, and the wear resistance is strong. It is more suitable for CRTS/ slab ballastless track sliding layer system, which can reduce the interaction between the track system and the bridge surface.
Applications:
Polypropylene needle-punched non-woven geotextile is mainly used for the sliding layer between CRTS slab ballastless track and beam surface of passenger dedicated railway, and the isolation layer between CRTS slab ballastless track and friction. It can also be widely used Hydropower, highways, railways, ports, airports, sports venues, tunnels, beaches, reclamation, environmental protection and other fields play the role of isolation, filtration, drainage, reinforcement, protection, etc.
Availability:
Quantity:
  • 100g-1500g

  • INNO

  • 5602100000

  • Technical Data:

Specification unit 100g 200g 300g 400g 500g 600g 700g
unit weight variation % ± 6
Grab strength MD
N
≥450 ≥900 ≥1200 ≥1600 ≥2000 ≥2400 ≥3200
TD ≥450 ≥900 ≥1200 ≥1600 ≥2000 ≥2400 ≥3200

Trapezoidal tear strength
MD
N

≥170

≥350

≥420

≥500

≥580

≥660

≥900

TD
≥170 ≥350 ≥420 ≥500 ≥580 ≥660 ≥900
CBR mullen brust strength kN ≥1.3 ≥2.5 ≥3.5 ≥4.3 ≥5.5 ≥6.5 ≥9.0
breaking strength MD kN/m ≥5.0 ≥11 ≥16 ≥22 ≥28 ≥35 ≥48
TD ≥5.0 ≥11 ≥16 ≥22 ≥28 ≥35 ≥48
Elongation at break MD % 40~70 50~80 70±20
TD
puncture resistance N ≥210 ≥430 ≥650 ≥900 ≥1200 ≥1500 ≥2500
