Long Fiber Polypropylene Spunbonded Filament Geotextile for Reinformcement

Polypropylene Filament Geotextile Advantages&Diagram
The worlds s first 6.5-meter-wide products, reducing splicing, enabling the convenient construction and saving construction costs;
Equipment and Technology are protected in Asia regional, four years of technology exclusive;

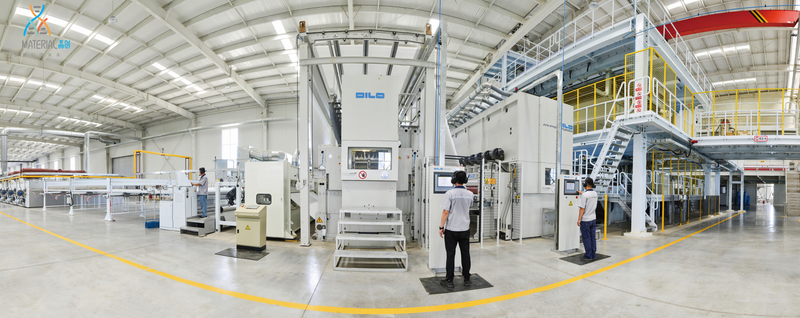

The process equipment adopts a complete set of automatic equipment newly developed by Oerlikon and OBAf the world's leading manufacturer in the textile industry;
The raw materials polypropylene particles are selected from French TOTAL, one of the four major petrochemical companies in the world;
The single fiber of the product is within 5.5-13dtex, and the number of the filaments comparing to other same \gram weight product is more, which means their mechanical properties are stronger;
The product surface is free of floating wireand no layered for high weight. There never appears the layer splicing due to wind, rain, snow, steep slope and other factors on the site of construction, ensuring the project quality and construction safety.Polypropylene Filament Geotextile Advantages&Diagram
The worlds s first 6.5-meter-wide products, reducing splicing, enabling the convenient construction and saving construction costs;
Equipment and Technology are protected in Asia regional, four years of technology exclusive;
The process equipment adopts a complete set of automatic equipment newly developed by Oerlikon and OBAf the world's leading manufacturer in the textile industry;
The raw materials polypropylene particles are selected from French TOTAL, one of the four major petrochemical companies in the world;
The single fiber of the product is within 5.5-13dtex, and the number of the filaments comparing to other same \gram weight product is more, which means their mechanical properties are stronger;
The product surface is free of floating wireand no layered for high weight. There never appears the layer splicing due to wind, rain, snow, steep slope and other factors on the site of construction, ensuring the project quality and construction safety.

Availability:

Quantity:



Inquire Add to Basket

Model:
100g-1500g
Brand:
INNO
Code:
5602100000

Product Description

1. Isolation
The use of geotextile different physical properties (particle size, distribution, density and thickness, etc.) materials (such as soil and sand and gravel soil, soil and concrete, etc.) for isolation. So that two or more materials are not loss of inter-and non hybrid,to maintain the overall structure of the material and functions of the structures is to strengthen the load bearing capacity.
2 .Filter
When the water from fine materials into the soil layers of rough material, the use of acupuncture geogextile good air and water permeability, so that the water flow through, and effective interception soil particles, spinning, the small stone so as to maintain the stability of the soil and water projects.
3 Drainage
Acupuncture geotextile is a good hydraulic material, which can from a soil internal drainage channel, soil structure and excess liquid gasemissions.
4 Reinforced
Acupuncture use of geotextile to enhance soil and the tensile strength of the antideformation ability to increase the stability of the building structure in order to improve the quality of the soil.
5 Protection
Will focus on effective stress-proliferation, transfer or broken down by external force to prevent the soil and damage.
6. Closed
Acupuncture geotextile and other materials (primarily asphalt or plastic film) with the formation of impermeable layer of insulation layer. (Mainly used for road resurfacing and repairing, etc.)
Technical data

Specification	Values
Weight (g/m2)	100	150	200	250	300	350	400	450	500	600	800
Weight variation (%)	±4%
Thickness (mm)	1.2	1.6	1.8	2.1	2.4	2.6	2.8	2.9	3.0	3.2	3.4
Width (m)	1 to 6.5m (5.9m for container transportation)
Width deviation (%)	±0.5%
Breaking Strength (≥KN/m)	5	8	11	15	20	22	24	26	28	34	50
Elongation at Break (%)	50% to 90%
CBR Bursting Strength (≥KN/m)	1.0	1.7	2.5	3.0	3.5	3.9	4.3	4.8	5.3	6.2	7.0
Sieve Size (mm)	0.07 to 0.20
Vertical Permeability Coefficient (cm/s)	≤2*10^-1
Tear Strength (≥KN/m)	0.15	0.24	0.35	0.39	0.42	0.46	0.50	0.53	0.58	0.65	0.9
